CW20A

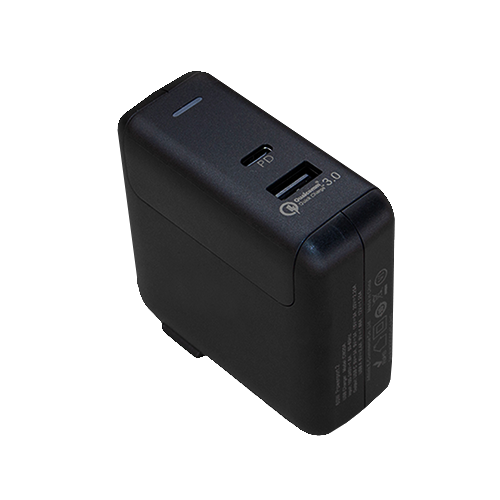

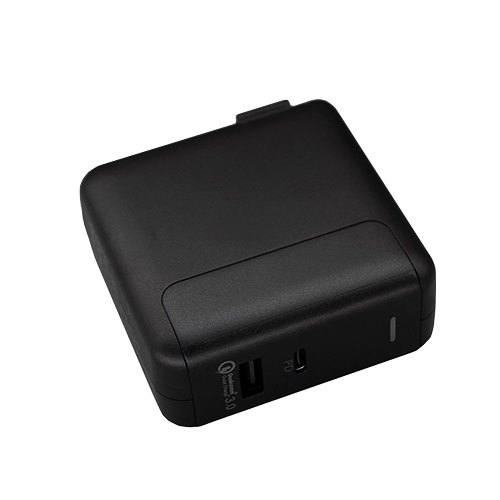

Product Model:CW20A
Charging Mode:PD fast charge,QC fast charge
Interface:Type C+ USBA, dual ports
Input:100-240V-0.6A 50Hz
Output:PD:5V3A/9V3A/15V3A/20V2.25A
QC:5V3A/9V1.67A/12V1.25A
Power:60W
Dimension:71.5*71.5mm*30mm
Housing Material:PC
Protect Function:output over-current protection,overvoltage protection,over-temperature protection,short-circuit protection
Applicable Environment:indoor use
Certification Scope:CB、Ctuvs、BSMI、FCC、Nrcan、DOE、CEC、CP65、Rohs
Product Introduction

1.Type-C port supports PD 45W fast charging function, high power density, to meet laptops and other medium power equipment charging; A port has a QC3.0 function; dual port output to meet the charging needs of different equipment.

2.The surface of housing is VDI-21 texture surface design, anti-scratch; foldable plug design, easy to carry, beautiful and generous, economical and practical.
